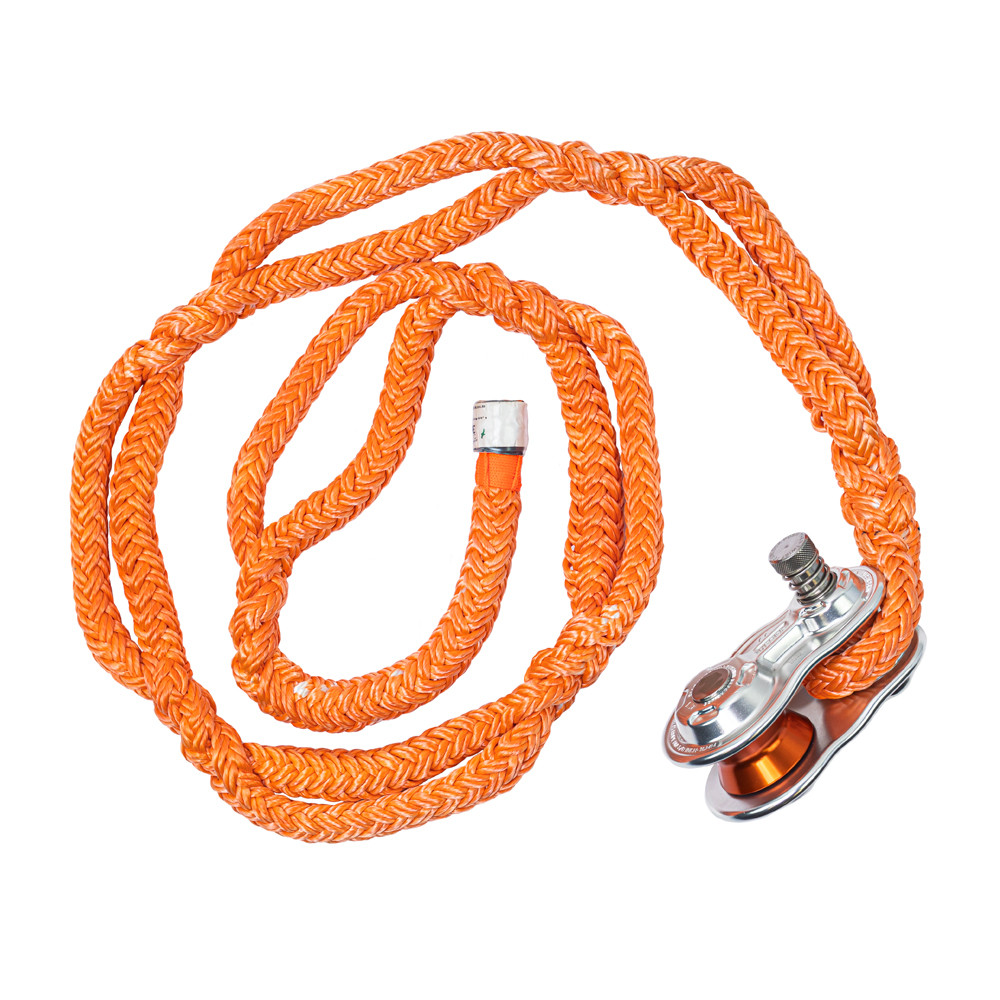

Rope Logic Ultra Sling with 1/2" Rigging Block

Name: Rope Logic Ultra Sling with 1/2" Rigging Block
Brand: Rope Logic
SKU: 52071
Price: 359.99 USD
Availability: BackOrder

$359.99

USD · Shipping calculated at checkout

The Rope Logic Ultra Sling with 1/2″ Rigging Block is a heavy duty rigging assembly designed for working lines up to 1/2 in (13 mm). The block features hot forged aluminum side plates, CNC machined aluminum sheaves, rounded rope friendly cheeks, and a captive screw pin lock for secure setup. It has a 20 kN working load limit, 100 kN minimum breaking strength, and accepts anchor slings up to 5/8 in (16 mm).

Available on backorder

SKU52071

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

The Rope Logic Ultra Sling with 1/2" Rigging Block is a great rigging assembly that accepts working lines up to 1/2" (13mm).

Specifications & options

20 kN WLL / 100 kN MBS
Hot forged aluminum side plates with rope friendly rounded cheeks
Precision CNC machined aluminum sheaves with wide bend radii
Low profile, secure, easy to-open captive screw pin lock
High wall, full diameter, improved anchor sling protection
Wide, concave upper sheave accepts 5/8” anchor slings
Flared side-plates reduce twisting in complex rigging scenarios
WORKING LOAD LIMIT: (WLL) 20 kN (4,496 lbs.)
MBS: 100 kN (22,480 lbs.)
MAX WORKING LINE DIAMETER: 1/2 in (13mm)
MAX SLING DIAMETER: 5/8 in (16mm)
UPPER SHEAVE DIAMETER: .75 in (19mm)
LOWER SHEAVE DIAMETER: 1.5 in (38mm)
HEIGHT: 4.7 in (118mm)
WIDTH: 2.7 in (68mm)
WEIGHT: 1 lb. (.45kg)
SIDEPLATE MATERIAL: Aluminum
SHEAVE MATERIAL: Aluminum
AXLE MATERIAL: Stainless Steel
