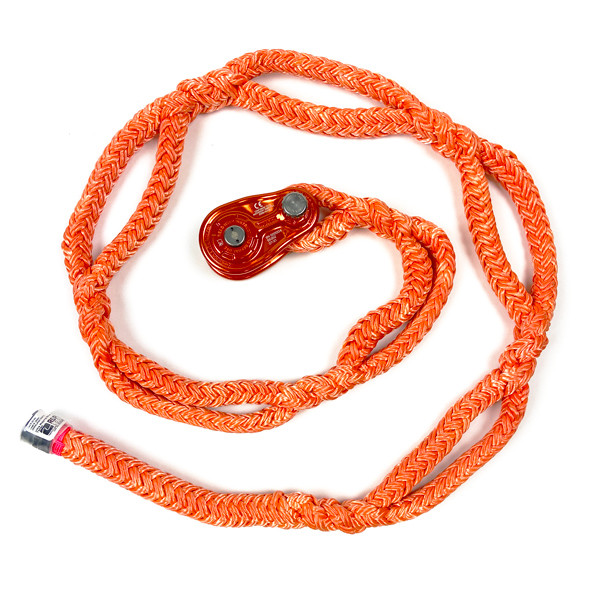

Rope Logic 1/2" Rigging Block with 5/8" Ultra Sling

Name: Rope Logic 1/2" Rigging Block with 5/8" Ultra Sling
Brand: Rope Logic
SKU: 51257
Price: 294.99 USD
Availability: InStock

$294.99

USD · Shipping calculated at checkout

The Rope Logic 1/2″ Rigging Block with 5/8″ Ultra Sling is a compact arborist rigging setup designed for working lines up to 1/2 inch and anchor slings up to 5/8 inch. Hot forged aluminum side plates, CNC machined sheaves, and rounded rope friendly cheeks help improve durability and rope handling, while the captive screw pin lock provides secure setup. The block has a 20 kN working load limit and a 100 kN minimum breaking strength.

In stock

SKU51257

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

The Rope Logic Ultra Sling with Notch 1/2″ Riggin Block is a small sized lightweight arborist block that accepts working lines up to 1/2” (13mm) diameter.

20 kN WLL / 100 kN MBS
Hot forged aluminum side plates with rope friendly rounded cheeks
Precision CNC machined aluminum sheaves with wide bend radii
Low profile, secure, easy to-open captive screw pin lock
High wall, full diameter, improved anchor sling protection
Wide, concave upper sheave accepts 5/8” anchor slings
Flared side-plates reduce twisting in complex rigging scenarios

Specifications & options

WORKING LOAD LIMIT (WLL) 20 kN (4,496 lbs.)
MBS 100 kN (22,480 lbs.)
MAX WORKING LINE DIAMETER 1/2 in (13mm)
MAX SLING DIAMETER 5/8 in (16mm)
UPPER SHEAVE DIAMETER .75 in (19mm)
LOWER SHEAVE DIAMETER 1.5 in (38mm)
HEIGHT 4.7 in (118mm)
WIDTH 2.7 in (68mm)
WEIGHT 1 lb. (.45kg)
SIDEPLATE MATERIAL Aluminum
SHEAVE MATERIAL Aluminum
AXLE MATERIAL Stainless Steel
