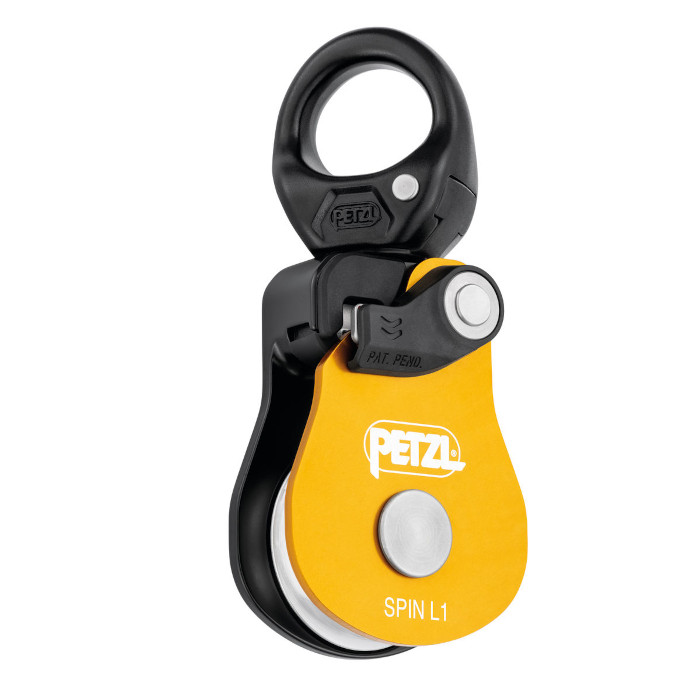

Petzl Spin L1

Name: Petzl Spin L1
Brand: Petzl
SKU: P001BA00
Price: 124.95 USD
Availability: InStock

$124.95

USD · Shipping calculated at checkout

The Petzl SPIN L1 is a high efficiency single pulley with an integrated swivel for hauling, load deviation systems, and tyroleans. Its 38 mm sheave with sealed ball bearings provides 95% efficiency, while the triple action side plate allows rope installation with the pulley still connected to the anchor. The swivel accepts up to three carabiners and helps keep the pulley properly oriented under load. Compatible with 7 to 13 mm rope with a 36 kN breaking strength.

In stock

SKUP001BA00

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

Very high efficiency single pulley with swivel

Openable even when attached to the anchor, the SPIN L1 pulley is designed for maximum simplicity in setting up hauling or load deviation systems, and tyroleans. The large diameter sheave mounted on sealed ball bearings gives it excellent efficiency. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of carabiners, ropes or slings.

Designed for maximum simplicity in setting up hauling or load deviation systems and tyroleans for work at height, rescue and tree care:

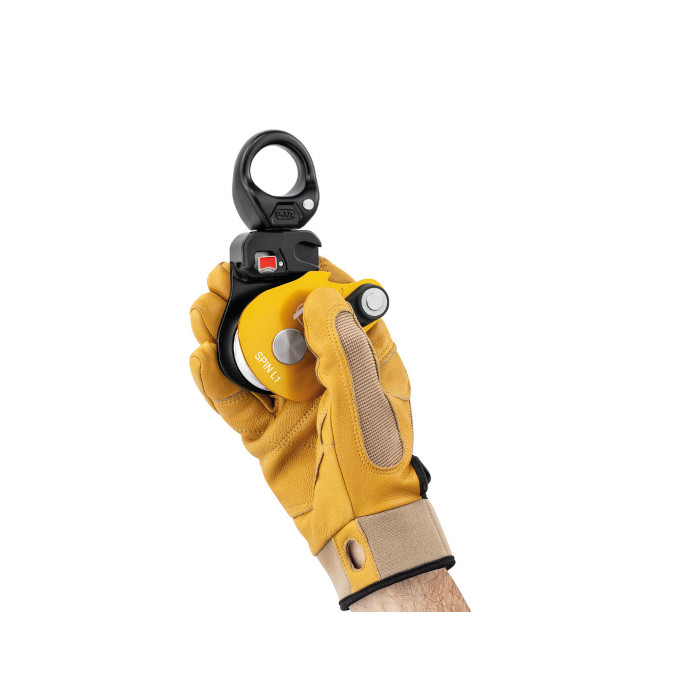

- triple-action opening of the moving side plate is quick and easy, even with gloves
- the rope can be installed with the device connected to the anchor.
- red mark provides a visual warning when the moving side plate is unlocked
- special side plate design protects the rope path
Optimal efficiency and easy handling:
- large diameter sheave mounted on sealed ball bearings for excellent efficiency
- swivel allows pulley to be oriented under load

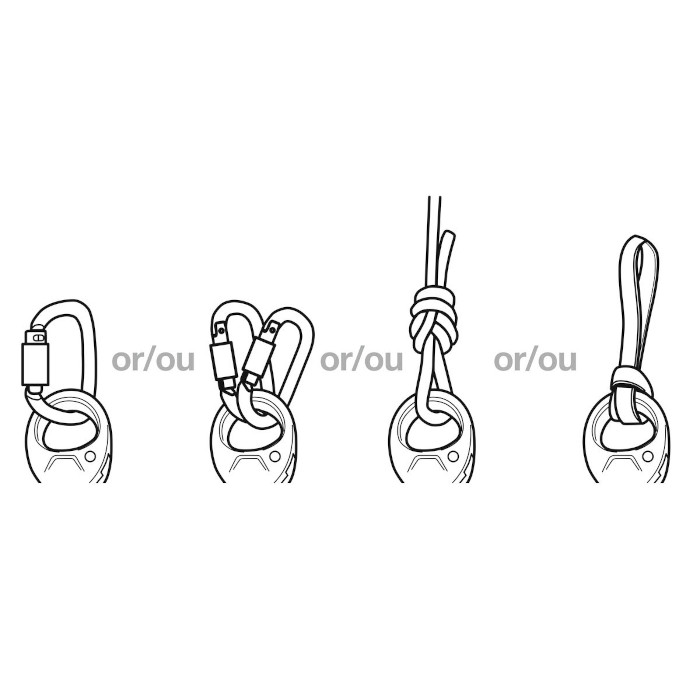

- swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.

Specifications

Weight: 290 g
Certification(s): CE EN 12278, NFPA 2500 Pulley General Use, UIAA, XF 494 : FZL-H-T9.5/13
Material(s): aluminum, stainless steel, nylon
Min. rope diameter: 7 mm
Max. rope diameter: 13 mm
Sheave type: sealed ball bearings
Sheave diameter: 38 mm
Maximum working load: 4 x 2 = 8 kN
Breaking strength: 36 kN
Efficiency: 95 %

References

References	P001BA00	P001BA01
Color(s)	Yellow	Black
Guarantee	3 years	3 years
Inner Pack Count	1	1

Specifications & options

Specifications

Weight: 290 g
Certification(s): CE EN 12278, NFPA 2500 Pulley General Use, UIAA, XF 494 : FZL-H-T9.5/13
Material(s): aluminum, stainless steel, nylon
Min. rope diameter: 7 mm
Max. rope diameter: 13 mm
Sheave type: sealed ball bearings
Sheave diameter: 38 mm
Maximum working load: 4 x 2 = 8 kN
Breaking strength: 36 kN
Efficiency: 95 %

References

References	P001BA00	P001BA01
Color(s)	Yellow	Black
Guarantee	3 years	3 years
Inner Pack Count	1	1
