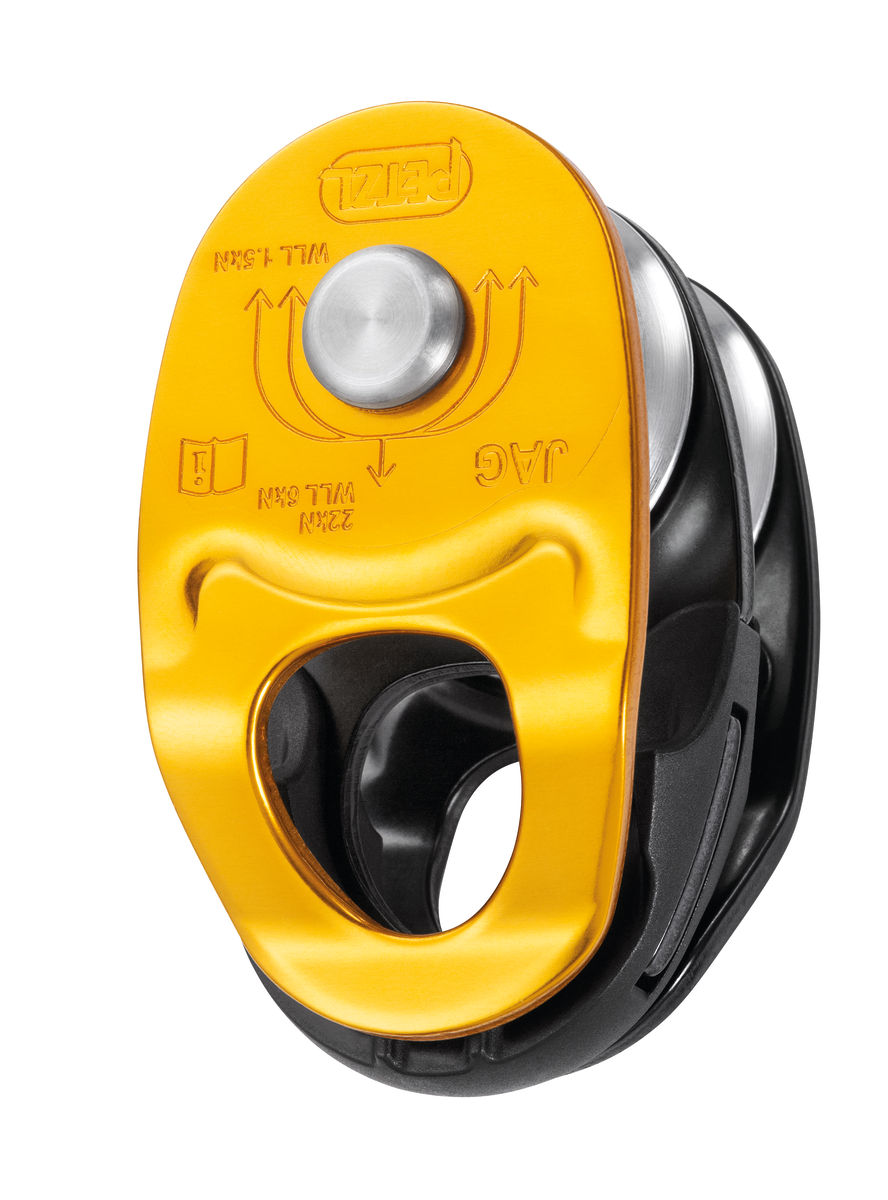

Petzl Jag Twin Pulley

Name: Petzl Jag Twin Pulley
Brand: Petzl
SKU: P45
Price: 100.95 USD
Availability: InStock

$100.95

USD · Shipping calculated at checkout

The Petzl JAG Twin Pulley is a high efficiency double pulley designed for use with the JAG TRAXION to create a 4:1 haul system. Twin 25 mm sheaves with sealed ball bearings provide 91% efficiency, while the compact aluminum construction keeps weight to 120 g. Compatible with 8 to 11 mm rope, the JAG Twin Pulley has a 6 kN maximum working load and is certified to CE EN 12278, UKCA, and NFPA 2500 Technical Use.

In stock

SKUP45

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

High-efficiency double pulley

The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
Sheaves mounted on sealed ball bearings for excellent efficiency

Specifications

Weight: 120 g
Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Sheave type: sealed ball bearings
Sheave diameter: 25 mm
Maximum working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
Efficiency: 91 %

Specifications & options

Specifications

Weight: 120 g
Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Sheave type: sealed ball bearings
Sheave diameter: 25 mm
Maximum working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
Efficiency: 91 %
