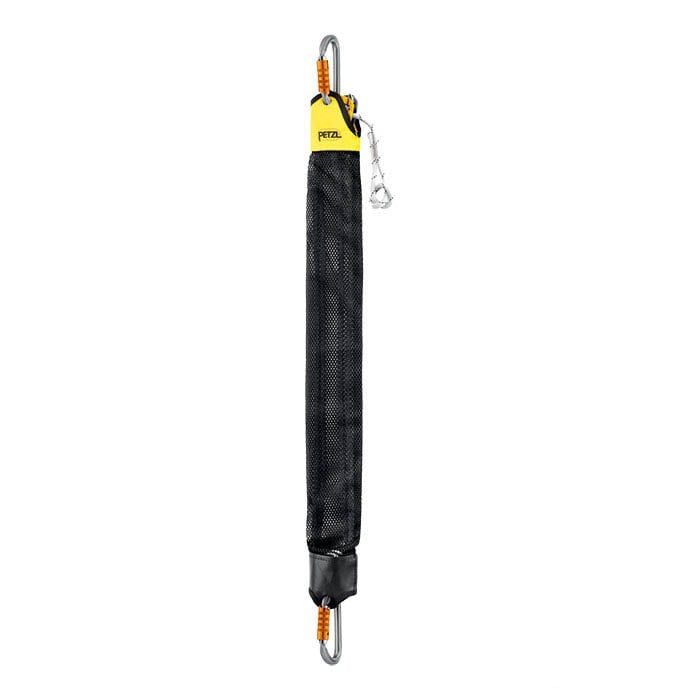

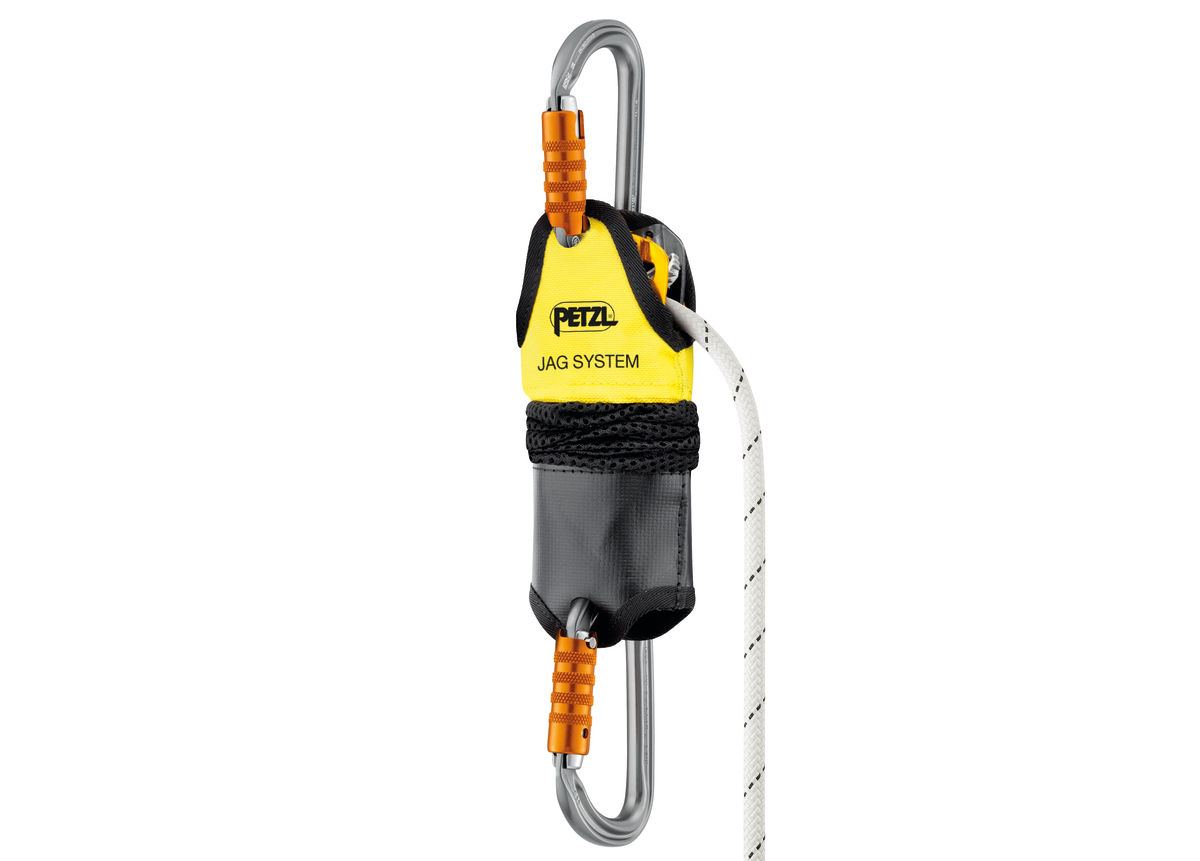

Petzl Jag System

Name: Petzl Jag System
Brand: Petzl
SKU: 6214
Availability: InStock

Price range: $419.95 through $479.95

USD · Shipping calculated at checkout

The Petzl JAG SYSTEM is a compact haul kit designed for pickoffs, releasable anchors, and tensioning systems. Its 4:1 mechanical advantage and sealed bearing pulleys provide efficient hauling, while the flexible cover helps prevent tangling and keeps the system ready to deploy. The kit uses 8 mm rope, includes two Am’D TRIACT LOCK carabiners, and is available in 1, 2, and 5 meter lengths.

Select your options to see stock availability.

Length

Clear

SKU—

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

Haul kit

The JAG SYSTEM haul kit for pickoffs, making a releasable anchor, or tensioning a system, thanks to its 4:1 mechanical advantage and excellent efficiency (sheaves with sealed ball bearings). The collapsed kit is highly compact, allowing it to be used even when the distance to the anchor is very short. The JAG SYSTEM haul kit is quick and easy to deploy: it is ready to use thanks to the flexible cover that prevents any risk of tangling. The haul end is color-coded for instant identification. It is available in three lengths: 1, 2 and 5 meters.

Versatile:
- allows pickoffs, making a releasable anchor, tensioning a system...
- can be coupled with an I'D descender to make a reversible rescue kit to pick off and evacuate a victim
Hauling effectiveness:
- 4:1 mechanical advantage allows user effort to be divided by 4
- excellent efficiency due to sheaves mounted on sealed ball bearings
- deployment possible even when the distance to the anchor is very short, thanks to the extreme compactness of the collapsed system
- 8 mm lightweight rope The mechanical advantage guarantees a good grip.
Quick and easy to deploy:
- kit always ready to use, thanks to the flexible cover that prevents any risk of tangling
- haul end immediately identifiable, thanks to the yellow color of the end of the cover
- the ends of the cover hold the connectors in position to facilitate clipping
Comes with two Am'D TRIACT-LOCK auto-locking carabiners
Available in three lengths: 1, 2 and 5 m
JAG and JAG TRAXION pulleys also available separately for making long haul systems (e.g. confined space descent/ascent system)

Specifications

Material(s): aluminum, nylon, polyurethane
Rope diameter: 8 mm
Certification(s): CE EN 358, EAC, NFPA 2500 Technical use
Sheave type: sealed ball bearings
Working load: 6 kN
Breaking strength: 16 kN
Efficiency: 91 %

Specifications & options

Specifications

Material(s): aluminum, nylon, polyurethane
Rope diameter: 8 mm
Certification(s): CE EN 358, EAC, NFPA 2500 Technical use
Sheave type: sealed ball bearings
Working load: 6 kN
Breaking strength: 16 kN
Efficiency: 91 %
