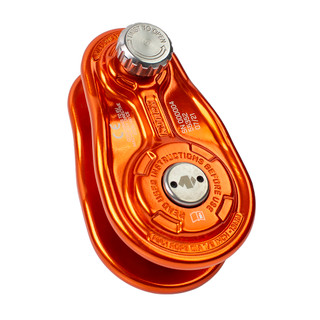

Notch 1/2" Rigging Block

Name: Notch 1/2" Rigging Block
Brand: Notch
SKU: 55352
Price: 185.99 USD
Availability: InStock

$185.99

USD · Shipping calculated at checkout

The Notch 1/2″ Rigging Block is a compact arborist block designed for rigging lines up to 1/2 inch (13 mm). Hot forged aluminum side plates, CNC machined sheaves, and wide bend radii provide smooth rope handling, while the captive screw pin allows secure opening and closure. The block has a 20 kN working load limit and 100 kN minimum breaking strength, with an upper sheave that accepts anchor slings up to 5/8 inch.

In stock

SKU55352

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

The Notch 1/2″ Rigging Block is a small sized lightweight arborist block accepts working lines up to 1/2” (13mm) diameter.

20 kN WLL / 100 kN MBS
Hot forged aluminum side plates with rope friendly rounded cheeks
Precision CNC machined aluminum sheaves with wide bend radii
Low profile, secure, easy to-open captive screw pin lock
High wall, full diameter, improved anchor sling protection
Wide, concave upper sheave accepts 5/8” anchor slings
Flared side-plates reduce twisting in complex rigging scenarios

Specifications & options

WORKING LOAD LIMIT: (WLL) 20 kN (4,496 lbs.)
MBS: 100 kN (22,480 lbs.)
MAX WORKING LINE DIAMETER: 1/2 in (13mm)
MAX SLING DIAMETER: 5/8 in (16mm)
UPPER SHEAVE DIAMETER: .75 in (19mm)
LOWER SHEAVE DIAMETER: 1.5 in (38mm)
HEIGHT: 4.7 in (118mm)
WIDTH: 2.7 in (68mm)
WEIGHT: 1 lb. (.45kg)
SIDEPLATE MATERIAL: Aluminum
SHEAVE MATERIAL: Aluminum
AXLE MATERIAL: Stainless Steel
Meets standard requirements of ASME B30.26
