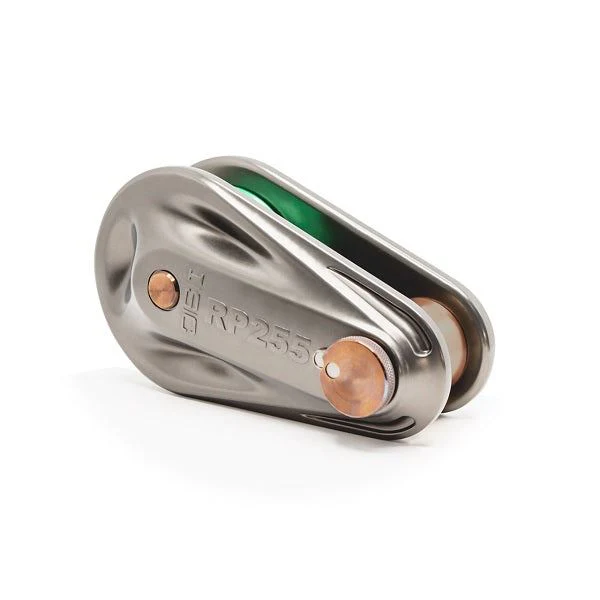

ISC RP255A1 MEDIUM PULLEY

Name: ISC RP255A1 MEDIUM PULLEY
Brand: ISC
SKU: RP255A1
Price: 419.95 USD
Availability: InStock

$419.95

USD · Shipping calculated at checkout

The ISC RP255A1 Medium Pulley is a heavy duty arborist rigging block designed for demanding lowering and rigging systems. Its hot forged aluminum frame and interlocking axle design provide increased strength, while the low profile SafeLock mechanism allows quick opening with secure closure. The pulley accepts rope up to 3/4 inch, has a 60 kN working load limit, and a 300 kN minimum breaking strength.

In stock

SKURP255A1

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

The ISC 200 Series Pulleys are redesigned versions of the popular ISC arborist blocks with a new SafeLock mechanism and improved strength.

Using state-of-the-art stress analysis programs, the hot-forged aluminum frames are optimized for the forces arborists put on their blocks, and the unique axle and frame interlocking design means that these pulleys are up to 150% stronger than their predecessors. The Patent Pending SafeLock system is an updated version of the ISC SpringLock design that provides an extremely low profile along with the same quick opening action.

Specifications & options

Dimensions 123 x 222 x 93 mm
Maximum Rope Diameter 3/4" (20mm)
Minimum Breaking Strength 300 kN (67,442 lbf)
Working Load Limit (WLL) 60 kN (13,488 lbf)
Locking Mechanism Low-Profile Springlock w/Safelock Button
Weight 5.9 lbs. (2.682kg)
Certifications CE Machinery Directive 2006/42/EC, UKCA Supply of Machinery (Safety) Regulations 2008

Ask about specifications

Ordering & support

Select your options and add gear to your cart. Shipping and applicable taxes are calculated at checkout. For questions about your setup, contact our team or call 724-256-8822.
