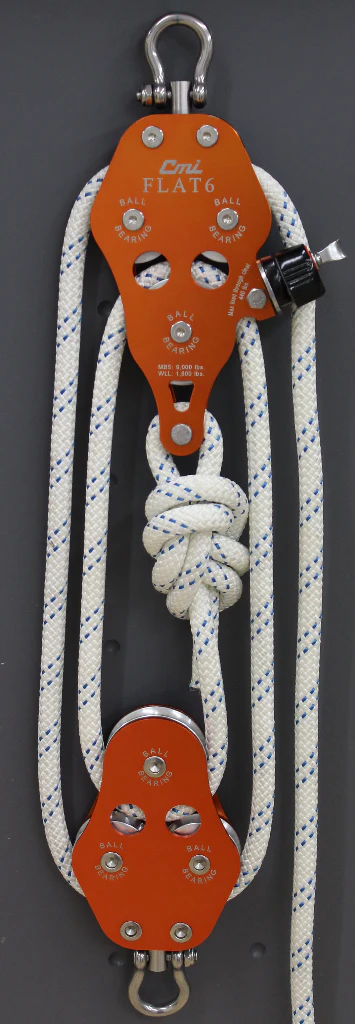

CMI FLAT6 Hauling System
$681.55
USD · Shipping calculated at checkout
The CMI FLAT6 Hauling System is a compact in line haul system that provides a 5:1 mechanical advantage for lifting, lowering, and tensioning heavy loads. The upper block features an integrated cam that holds the rope in place and releases when the tail is lifted. Aluminum side plates, aluminum sheaves, and sealed stainless steel bearings provide durable performance, while the system accepts 3/8 to 1/2 inch rope. The FLAT6 has a 9,000 lb minimum breaking strength and a 1,800 lb working load limit.
Get the right gear for your setup.
Questions about specifications or compatibility?
Talk to our team · 724-256-8822Product description
The FLAT6 is a very compact in-line haul system which produces a 5:1 mechanical advantage. These high strength blocks allow you to lift and lower the heaviest of loads. This system is perfect for pre-tensioning ropes in a speedline application and would also make a great accessory to the Portawrap that allows the user to
pre-tension lines, create lift or remove slack from systems with a lot of rope in between.
The upper block has an integrated cam device to hold the rope in place. To release the rope, flip the tail upward and it will be released from the cam.
Specifications & options
Orange anodized aluminum side plates
Aluminum sheaves
High quality sealed stainless steel bearings
3/8" - 1/2" rope capacity - 7/16" is ideal
MBS: 9,000 lbs
WLL: 1,800 lbs
Weight: 3.4 lbs
Ordering & support
Select your options and add gear to your cart. Shipping and applicable taxes are calculated at checkout. For questions about your setup, contact our team or call 724-256-8822.
