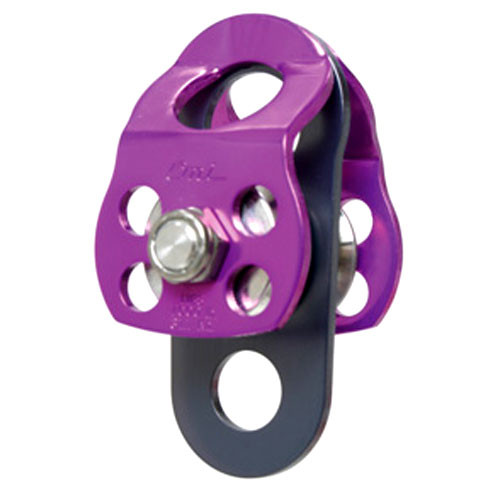

CMI Aluminum Double Micro Pulley

Name: CMI Aluminum Double Micro Pulley
Brand: CMI
SKU: RP110D
Price: 81.30 USD
Availability: InStock

$81.30

USD · Shipping calculated at checkout

The CMI Aluminum Double Micro Pulley is a compact double pulley designed for rescue, hauling, and rigging systems. Purple anodized aluminum side plates, two 1.25 inch aluminum sheaves, Oilite bronze bushings, and an aluminum axle provide durable, smooth performance. The pulley accepts rope up to 1/2 inch, has a 7,000 lb minimum breaking strength, and a 1,400 lb working load limit.

In stock

SKURP110D

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

The CMI RP110D Double Sheave Micro Pulley features purple anodized aluminum sideplates, two 1-1/4″ aluminum sheaves, bushing, and aluminum axle.

Specifications:

Sheave Diameter: 1.25" (2)
Max Rope Diameter: 1/2"
Body Material: Anodized Aluminum
Sheave Mechanics: Oilite Bronze Bushing
Sheave Material: Aluminum
MBS: 7,000 lbs
SWL: 1,400 lbs
Width: 1.625"
Height: 3.50"
Depth: 1.775" (sideplate to sideplate)

Specifications & options

Specifications:

Sheave Diameter: 1.25" (2)
Max Rope Diameter: 1/2"
Body Material: Anodized Aluminum
Sheave Mechanics: Oilite Bronze Bushing
Sheave Material: Aluminum
MBS: 7,000 lbs
SWL: 1,400 lbs
Width: 1.625"
Height: 3.50"
Depth: 1.775" (sideplate to sideplate)
