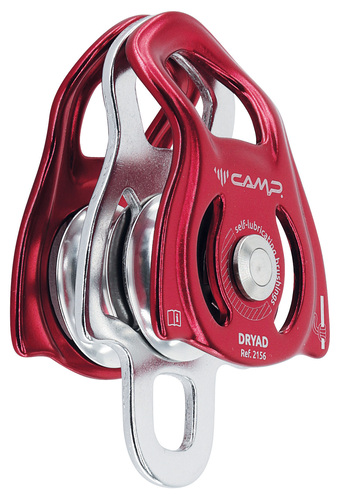

CAMP Dryad Pulley

Name: CAMP Dryad Pulley
Brand: CAMP
SKU: 2156
Price: 54.95 USD
Availability: InStock

$54.95

USD · Shipping calculated at checkout

The CAMP Dryad Pulley is a compact double pulley designed for block and tackle systems, rescue work, and light hauling applications. Its aluminum alloy body and sheaves pair with self lubricating brass bushings for smooth operation, while the main attachment point accepts two carabiners and the lower becket allows additional system connections. The pulley works with ropes up to 13 mm, provides 80% efficiency, and has a 4 kN maximum working load with a 24 kN breaking strength.

In stock

SKU2156

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

Compact double pulley for block-and-tackle systems. Main attachment point accommodates two carabiners and the becket features a bottom attachment point for linking components in a block-and-tackle system. For use with ropes up to 13 mm. Prusik minding, the self-locking knot can be installed on both sides of both wheels. Self-lubricated brass bushings are sufficient for light applications at low speed. Efficiency: 80%. Aluminum alloy body and wheels, stainless steel axle.

Specifications & options

Ref.

Product name

Weight

Inner sheave diameter

Rope diameter Max

Working load Max

Breaking load

Brass bushing

Sheave material

EAC

LBF

EN 12278

2156

DRYAD

170

6.0

1 kN x 4 = 4 kN

225 LBF x 4 = 900 LBF

5396

•

Aluminum alloy

•

Ask about specifications

Ordering & support

Select your options and add gear to your cart. Shipping and applicable taxes are calculated at checkout. For questions about your setup, contact our team or call 724-256-8822.
