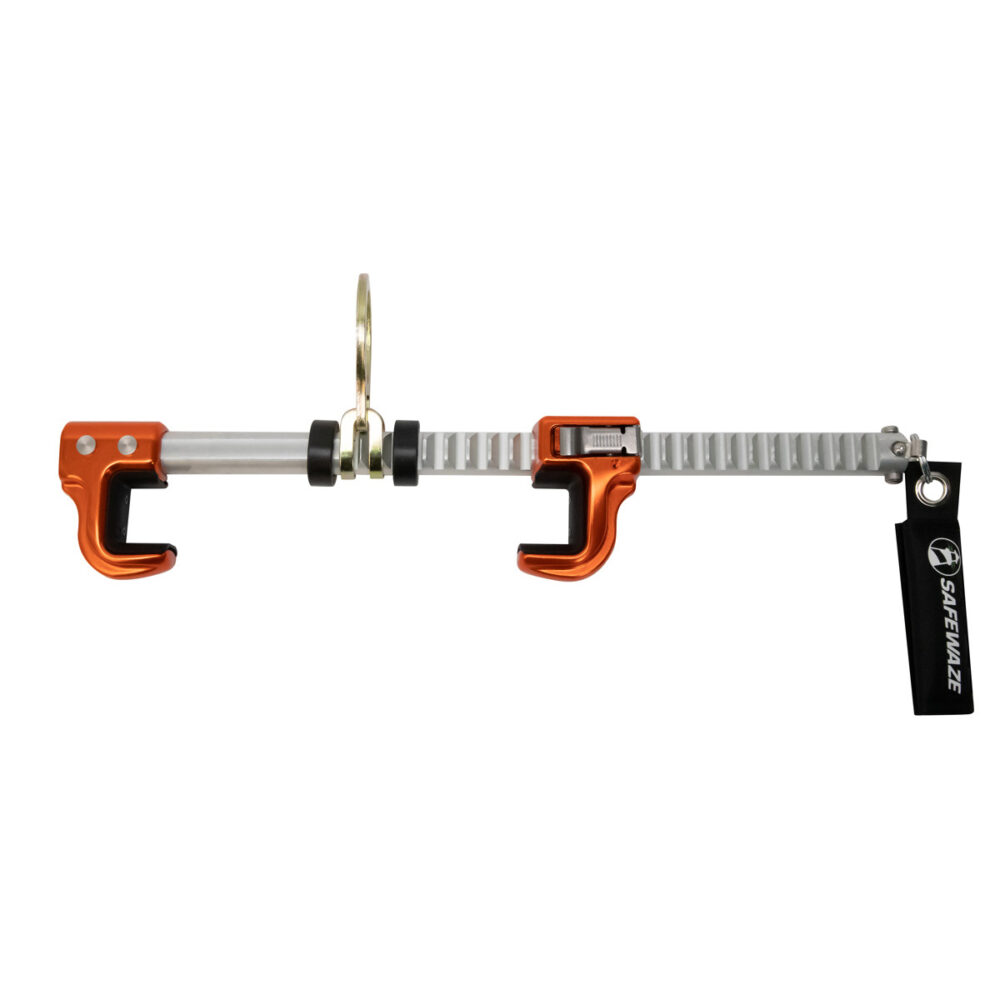

Safewaze Sliding Beam Anchor 3.5″-14.5″

Name: Safewaze Sliding Beam Anchor 3.5″-14.5″
Brand: Safewaze
SKU: 021-4075
Price: 249.04 USD
Availability: InStock

$249.04

USD · Shipping calculated at checkout

The Safewaze Sliding Beam Anchor 3.5″ to 14.5″ provides a mobile anchorage point for horizontal beams during fall protection work. Nylon rollers allow smooth travel along the beam, while the 180° rotating D ring and one handed trigger simplify movement and adjustment. Its lightweight aluminum construction fits flange widths from 3.5 to 14.5 inches and thicknesses up to 1.25 inches, with a 5,000 lb minimum breaking strength. The anchor meets ANSI Z359.18-2017 Type A and applicable OSHA standards.

In stock

SKU021-4075

Get the right gear for your setup.

Questions about specifications or compatibility?

Talk to our team · 724-256-8822

Product description

The Sliding Beam Anchor offers a pivot D-ring, replaceable jaw liners and smooth trailing hands-free mobility. This lightweight compact design can be used on overhead or foot level tie-off with one-handed trigger action and single sided adjustment.

180° rotating connection point
Nylon rollers for more effective slide
Easy trailing for hands-free work
Single sided adjustment
Easy, one-handed trigger allows for quick lock & release
Lightweight aluminum construction
Overhead and foot level tie-off
Protective label cover to ensure compliance
Fits flange up to 1.25"

Specifications & options

Materials:	Aluminum support bar and clamps, nylon rollers and jaws, plated steel D-ring, polyester label cover
Weight:	3.1 lbs. (1.4 kg)
Overall Length:	20.5"
Beam Flange Width Range:	3.5"-14.5"
Beam Flange Thickness:	Up to 1.25"
Minimum Breaking Strength:	5,000 lbs.
ANSI Weight Capacity:	130-310 lbs. (59-141 kg)
OSHA Weight Capacity:	Up to 420 lbs. (191 kg)
ANSI Standards:	Z359.18-2017 Type A
OSHA Standards:	1926.502, 1910.140, 1910.66
