NRS Swivel and Plates for Padded Raft Seats

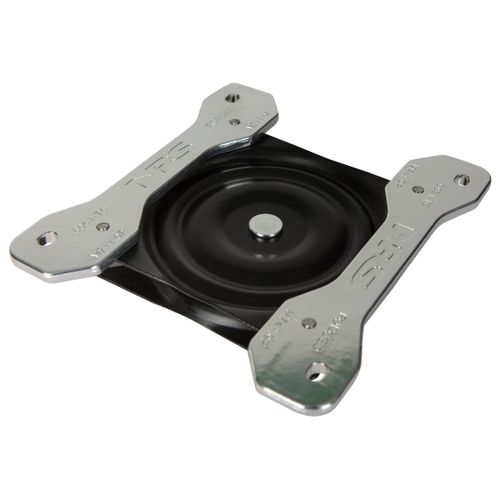

• The unit consists of a swivel base that allows the seat to rotate 360 degrees, and two hot-forged aluminum plates that are bolted to it.
• The two aluminum plates have holes in the 7" x 7.5" bolt pattern for the NRS Low-Back and High-Back Seats. Use the bolts you have with your seat to attach it to the aluminum plates.
• All seat plates on NRS Seat Bars and Angler Seat Bars made in the last several years will have bolt holes in the 5.25" x 5.25" pattern for the swivel.
• If you have an older seat bar that doesn't have those holes, just drill four 1/4" holes in that 5.25" x 5.25" pattern.
• The unit comes with mounting hardware: 4 each 1/4"-20 x 1" bolts and lock nuts, and 8 flat washers.
• The Universal Seat Mount, has both the 7" x 7.5" and 5.25" x 5.25" hole patterns. It can be used for mounting your swivel seat anywhere on the 1 5/8" frame pipe.
