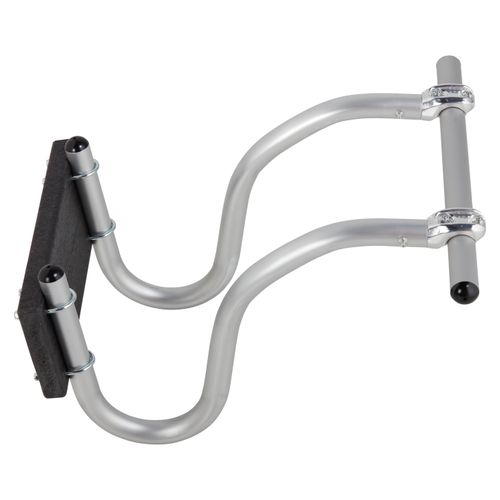

NRS Frame U-Style Raft Motor Mount

• This mount is also a good choice when you have a heavy motor; the curved bars resting against the raft's tubes support the weight.
• NRS uses their heavy-duty 1-5/8" OD 6061-T6 aluminum pipe to make the framework for the Motor Mount.
• The 1 1/2" x 7 1/2" x 18" wide transom plate is a piece of wood/plastic composite decking material that will not rot or deteriorate when exposed to water and sun.
• Four 3 3/4" motor mount U-bolts hold the transom plate firmly in place.
• If you already have an NRS Stern Seat Mount, you can install your Motor Mount on either side of the seat plate.
• If you're not using a stern seat, the Motor Mount comes with a 24" piece of frame pipe for attaching the Mount to the Stern Rails.
• If you do not have a Stern Seat Mount you will need a pair of NRS Stern Side Rails (item #90022.02, sold separately) to link the Motor Mount to the rear Cross Bar of your frame.
• The distance from the center of the attachment bar to the center of the upright bars is 25".
• The transom plate can be mounted on either side of the uprights, and adjusted up and down as needed.
• The Mount fits raft tubes 18"-24" in diameter.
• In NRS's experience, a 10-hp motor is generally as large a motor as most boaters use. Even a 3-hp motor will move a raft along at a pretty good clip.
• Always attach a safety rope or strap from your motor to the frame.
