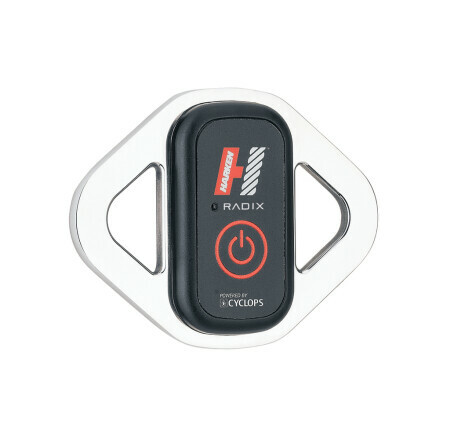

Harken Radix

Harken Radix Load Monitor – Advanced Real-Time Load Management for Technical Rope Rescue

The Harken Radix represents the next evolution in load monitoring for technical rope rescue and rope access systems. Designed to increase safety, accuracy, and operational efficiency, Radix provides real-time load data directly to any mobile device—transforming the way teams assess forces within rope systems during rescue and work-at-height operations.

Engineered as a fully certified connector, the Radix is compact, lightweight, and built for the demands of real rescues, remote access work, and industrial environments. Its durable construction ensures reliable performance in harsh conditions, while its IP68 rating guarantees protection against dust and continuous water immersion.

Enhanced Data Tracking & Wireless Connectivity

Radix includes a powerful data logging function that records and stores historical load information. This allows teams to analyze performance, refine best practices, and mitigate risk and liability based on actual load measurements rather than estimations.

Its broadcast functionality offers unmatched versatility:

• Monitor and log data from a single Radix device on unlimited mobile devices
• Use a single mobile device to track up to 16 Radix units simultaneously

The Harken Safety & Rescue App—available on both the Apple App Store and Google Play Store—provides an intuitive interface for live monitoring, data review, and device management.

Key Features

• Real-time load monitoring for rope rescue & rope access systems
• Lightweight, compact, and certified as a connector for in-line use
• Advanced data logging for training validation and liability reduction
• Wireless broadcast capability for multi-device monitoring
• Rugged IP68 construction for extreme environments
• Compatible with iOS & Android through the Harken Safety & Rescue App

Technical Specifications

General

• Part Number: IN406
• WLL (Working Load Limit): 12 kN
• MBS (Minimum Breaking Strength): 60 kN

Weight

• Packaged Weight:
  • 0.96 lbs (437 g)
• Product Weight:
  • 0.3 lbs (134 g)

Dimensions

• Packaged Dimensions:
  • 8 x 5 x 2 in (203 x 127 x 51 mm)
• Product Dimensions:
  • 3.7 x 2.8 x 0.7 in (93 x 72 x 18 mm)

Certifications

• ANSI Z359.12-2019
• CE Certified as PPE under Regulation (EU) 2016/425
• IP68 – Dust-tight & protected against continuous water immersion
• FCC ID: 2A9FYSL02

Select your options and add gear to your cart. Shipping and applicable taxes are calculated at checkout. For questions about your setup, contact our team or call 724-256-8822.
